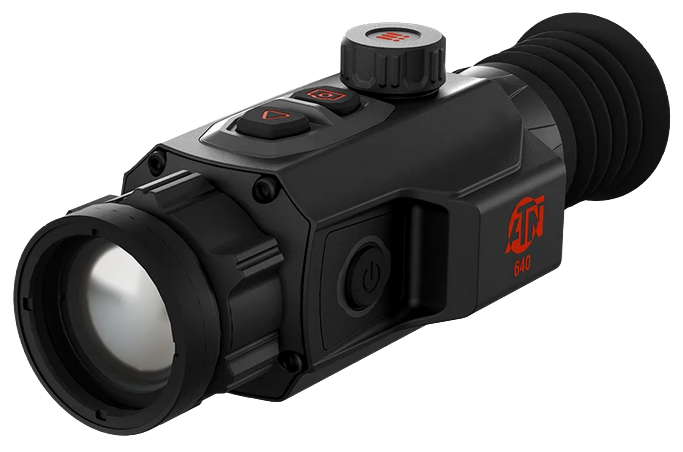

Powered by a 12um thermal core the ThOR 6 mini comes in three configurations: 256×192 (?20 mK NETD Enhanced Sensitivity) 384×288 and 640×512 (18 mK NETD High Sensitivity). This gives you the flexibility to choose the resolution that matches your hunting style environment and engagement range. Whether you’re scanning wide-open fields or weaving through dense brush the advanced NETD ratings reveal even the faintest heat signatures like a hog bedded in cover or a coyote slipping through early morning fog. Expect higher contrast sharper detail and faster target acquisition in the harshest conditions. Choose your resolution. Trust your clarity. Own the night. – Detector Type 12um VOx Uncooled Focal Plane Array – Sensor Resolution 640×512 – Refresh Rate 50 Hz – Thermal Sensitivity (NETD) 18mK – SharpIR© Yes – Non-Uniformity Correction (NUC) Auto / Semi Auto / Manual – Lens System 35 mm (Ge); F/1.0 – Field of View (HxV) 12.5° × 10.0° – Focus Mechanism Manual Front Lens Adjustment – Magnification 2-16× – Digital Zoom 1× 2× 4× 8× – Zoom Type Step & Smooth Zoom – Detection Range 3000 m – Display Resolution 0.49 OLED 1920×1080 Resolution – Picture-in-Picture (PIP) Yes – Reticle Types 10 Styles – Zeroing Freeze Yes – Color Palettes White Hot Black Hot Iron Red Alarm Green Hot Sepia – Eye Relief 50 mm – Diopter Range -5 to +5 D – Battery Type 1 × 18650 Rechargeable (Replaceable) – Battery Life ~7 hrs – Supports External Power Supply Yes USB Type-C (5 VDC / 2A) – Internal Storage 64 GB – Video / Audio Recording Yes – Geomagnetic + Gyroscope Yes – Hot Point Tracking Yes – Reticle Transparency Control Yes – Internal Gallery Yes – Recoil Activated Video (RAV) Yes – Standby / Sleep Mode Yes – Startup Time <7 seconds (instant from Standby) – Media Output USB Type-C – Built-in Wi-Fi (Hotspot) Yes – App (Apple Store / Google Play) Yes (ATN Connect 6 iOS & Android) – Material Magnesium Alloy – Mounting Picatinny Rail – Weight 540 g / 1.19 lbs – Dimensions (L x W x H) 190×65×65 mm (7.48×2.56×2.56 in) – Max Recoil Rating 6000 Joules / 1000g acceleration over 0.4 ms – Working Temperature -30°C to +55°C (-22°F to 131°F) – Waterproof / IP Rating IP67 – Warranty 5 Year
