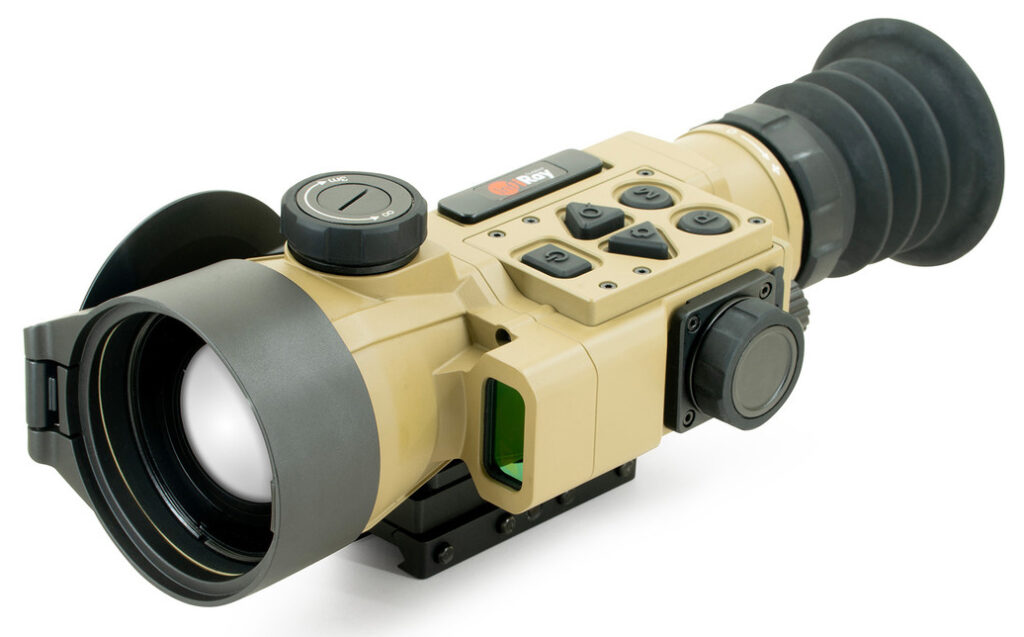

The Hybrid Compact (HCH50R) is the next evolution of the HYBRID series combining advanced thermal performance with versatile functionality. It features a 50 mm F/0.9 lens and the industry’s first available 10 µm thermal sensor. The 640×480 InfiRay sensor with a 15 mK NETD rating delivers exceptional thermal sensitivity and clarity. The Hybrid Compact functions as a weapon sight thermal clip-on or handheld monocular. Its 3.5x native magnification and 60 mm eye relief provide a comfortable immersive view. The Fast Engine low-latency architecture (15 ms) and 60 Hz refresh rate ensure a smooth life-like image improving target tracking and accuracy. A 1440×1080 AMOLED display provides a crisp image while the integrated laser rangefinder and ballistic calculator adjust for drop based on target distance. Built-in photo and video recording with 64GB of internal storage lets you capture every detail. – Like other HYBRID series models the HCH50R can be used as a clip-on thermal (with day scope magnification up to 10×) or as a dedicated thermal weapon sight. The industry’s first available 10 µm sensor increases pixel density by 44% providing high resolution while reducing the overall size of the unit. Powered by a 18650 cell rechargeable battery the HCH50R includes a Bluetooth remote for seamless clip-on control and a secure DLOC Picatinny rail mount for quick repeatable attachment. The HCH50R comes with a durable hard case for reliable protection in the field. – Optics – Objective Focal Length 50mm – Detection Range 3060 Yards – Optical Magnification 3.5X – Display Type AMOLED – Eye Relief 60mm – Digital Magnification 8X – Diopter Range -5 to +5 – Vertical Angular Field of View 5.5° – Horizontal Angular Field of View 7.3° – Focusing Mechanism Manual Focus – Objective F# 0.9 – Objective Diameter 50mm – Objective Lens Material Germanium – Display Resolution 1440×1080 – Features & Performance – Startup Time <10 Seconds Instant from Standby Rangefinder – Integrated 1200 yd LRF – Color Palettes – White Hot Black Hot Red Hot Color Violet Crimson Viridian – Picture-in-Picture Yes – Storage Capacity 64GB – Connector Output Power/Data – User-Updatable Firmware Yes – Mobile App Yes – One-Shot Zero Yes – Stand-by Mode Yes – Warranty 5 Years – Run Time 7+ – Power Source USB-C External 18650 Battery – Reticle 8 (7 Static 1 DIY) – Connector Type USB-C – External Power Source USB-C – Country of Manufacture China – Wifi Yes -Onboard Recording Yes – Image Capture Yes – Video Output Yes – Environmental Specifications – Operating Temperature Range -4°F~122°F – Recoil Rating 1000 g/s² (300 Win./7mm Mag) – Ingress Protection IP67 – Physical – Mounting Interface DLOC – Housing Material Magnesium Alloy – Weight 25.56 – Height 3.07 – Width 4.05 – Length 9.87 – Sensor Specifications – Non-Uniformity Correction (NUC) Manual Automatic Semi-Automatic – Device Technology Thermal Imaging – Sensor Resolution 640×480 – Sensor Type InfiRay MICRO II – Sensor Pixel Size 10um – Thermal Sensitivity <15mk – Sensor Frame Rate 60hz/30hz
